Audit and Restoration of Gilgen Automatic Doors at Blue Sky Complex
Managing Technical Debt: Saving the Entrance Group 🏢⚙️
The commissioning of commercial real estate is often accompanied by chaos at the intersection of different contractors' responsibilities. Automatic doors in high-traffic areas do not forgive negligence.

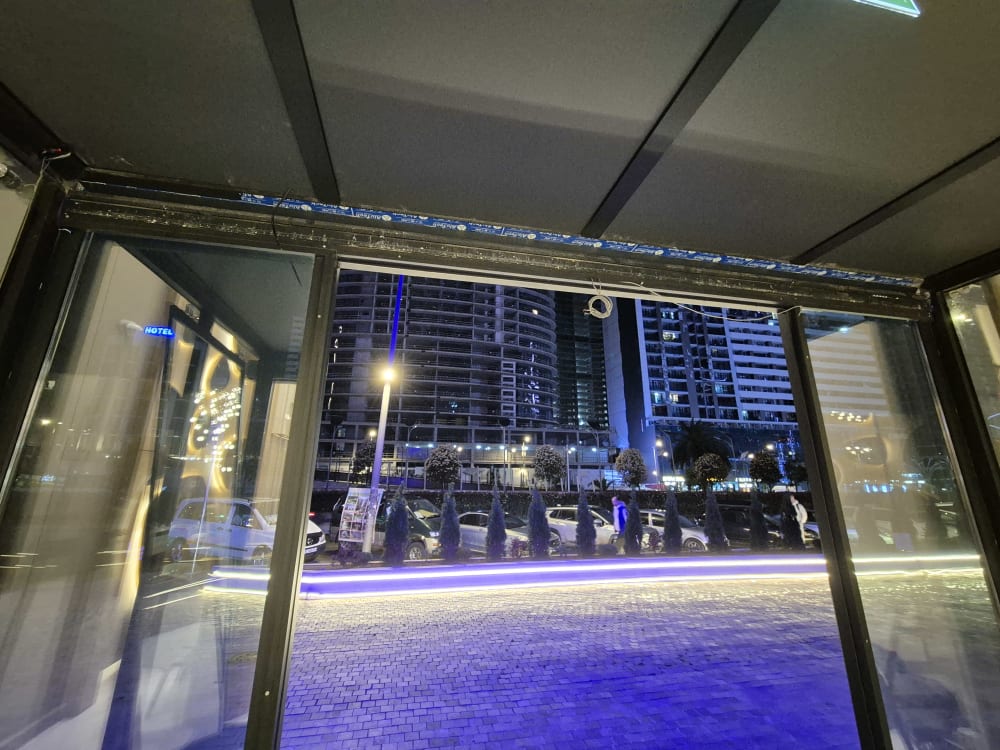

In this case, we conducted a large-scale audit and full restoration of Gilgen automated sliding systems in the commercial blocks (Block A, Block B) and the new PSP pharmacy at the Blue Sky complex in Batumi.
1. Context and Problematic (The "As-Is" State) 🚨
The systems were handed over to the complex's new executive director in a virtually non-functional state. The doors were operated manually, and when attempting an automatic start, the controllers flashed error codes
Clinical Picture at Launch:
- Intense squeaking and jerking of the leaves during movement.
- Persistent alignment errors (the controller "lost" the limit points).
- Constant opening/closing cycles (Looping).

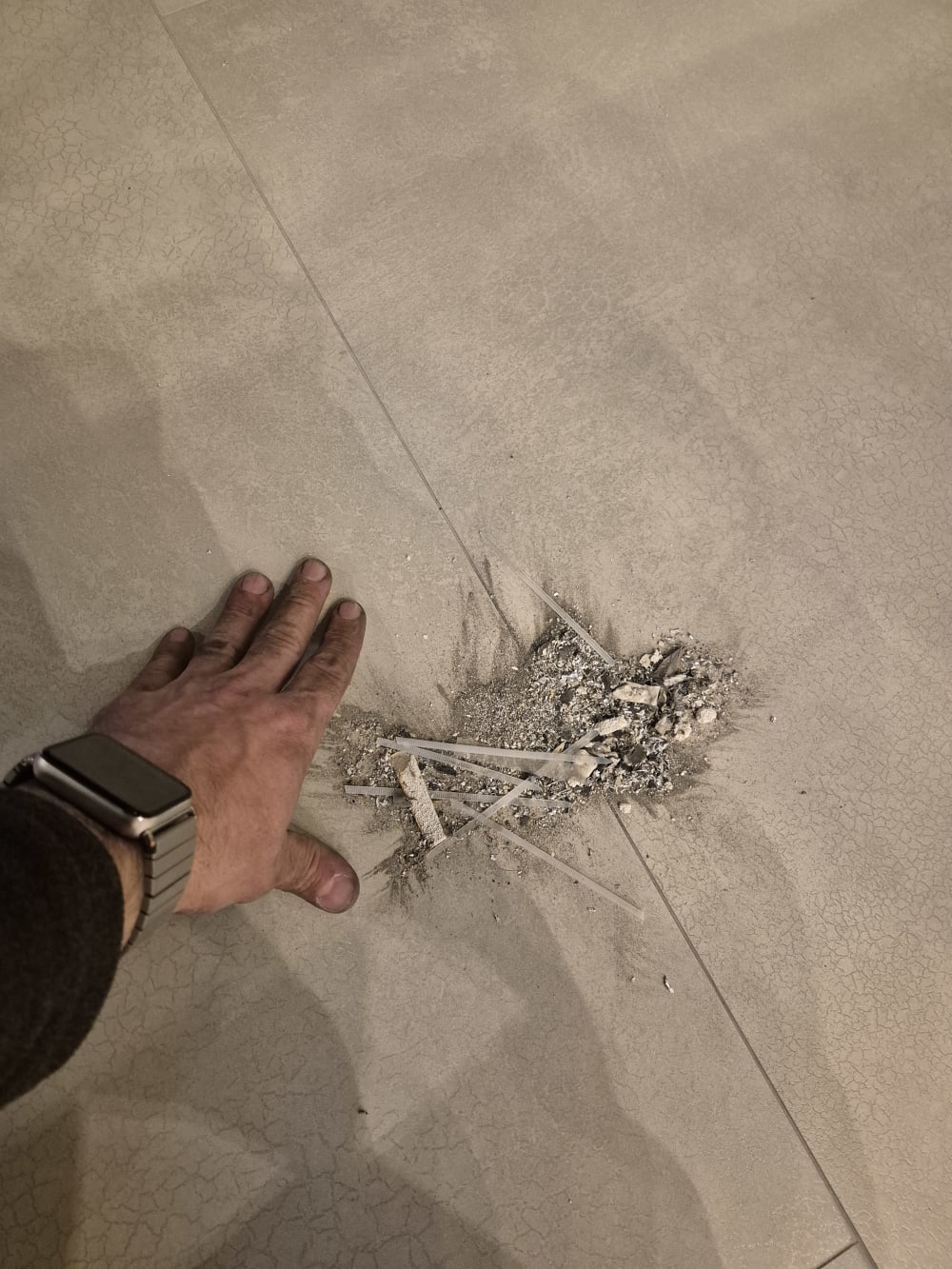

The primary cause: Lack of commissioning after installation and the conduct of "dirty" construction work in areas with already installed, open mechanisms.
2. Engineering Audit: Anatomy of Negligence 🕵️♂️🔍
A primary inspection revealed the extent of incompetence from the original installation crew and subsequent "specialists." The issue was not electronic failure, but a total violation of physics and assembly logic.
Audit Results:

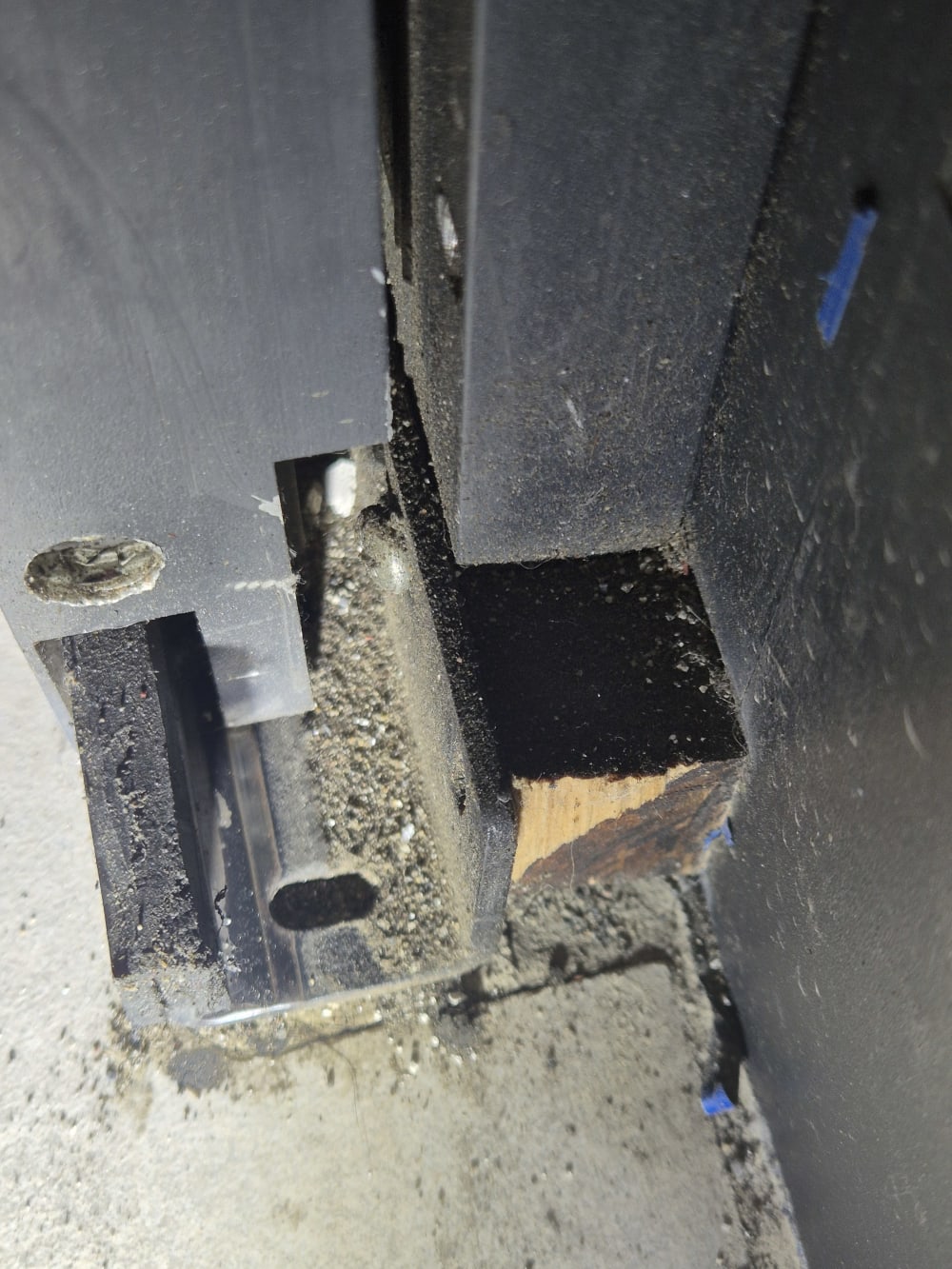

- Fatal "Help" from Predecessors: Prior to our visit, third-party "craftsmen" were called to fix the squeaks by liberally applying grease to the tracks and rollers. In mechanisms of this type (aluminum + nylon), lubrication is
strictly prohibited . Mixing with construction debris, it turned into a thick abrasive paste that permanently embedded metal shavings into the rollers. - Geometric Violation: The track profile was attached to the mounting plate with random self-tapping screws in a chaotic order, completely ignoring the factory technological holes for specialized fasteners.

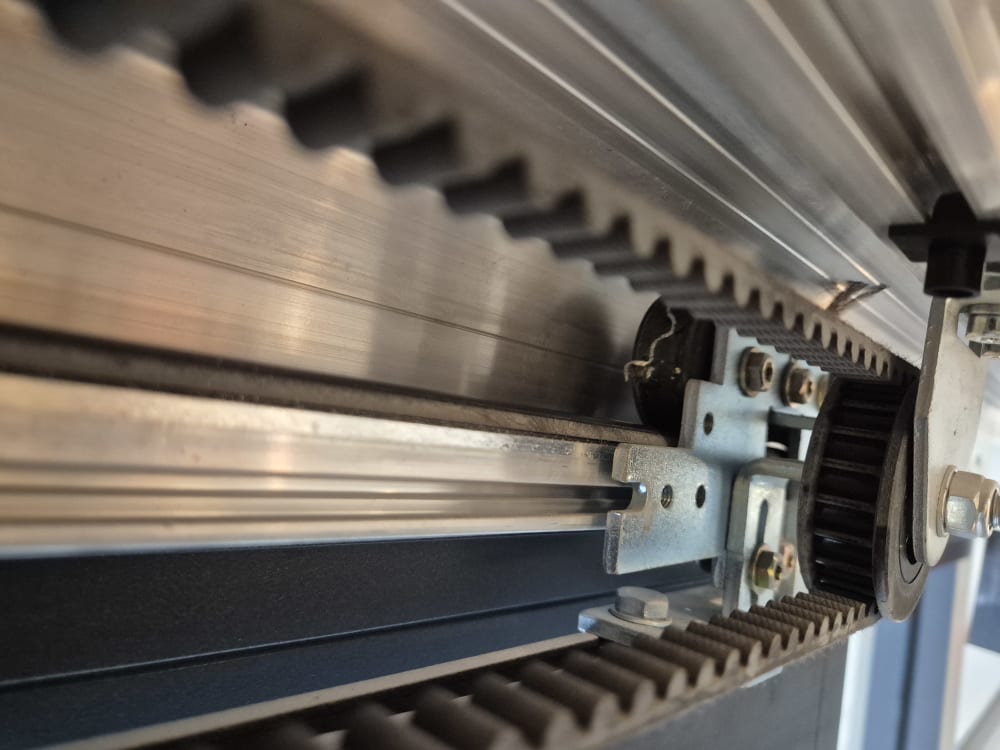

- Loss of Kinematics: Due to misalignment, the rollers did not press against the tracks properly—out of the 4 basic rollers on one leaf, a maximum of 3 had contact with the rail.
- Installation Vandalism: One entrance group was installed so low that previous installers attempted to compensate for the clearance by crudely

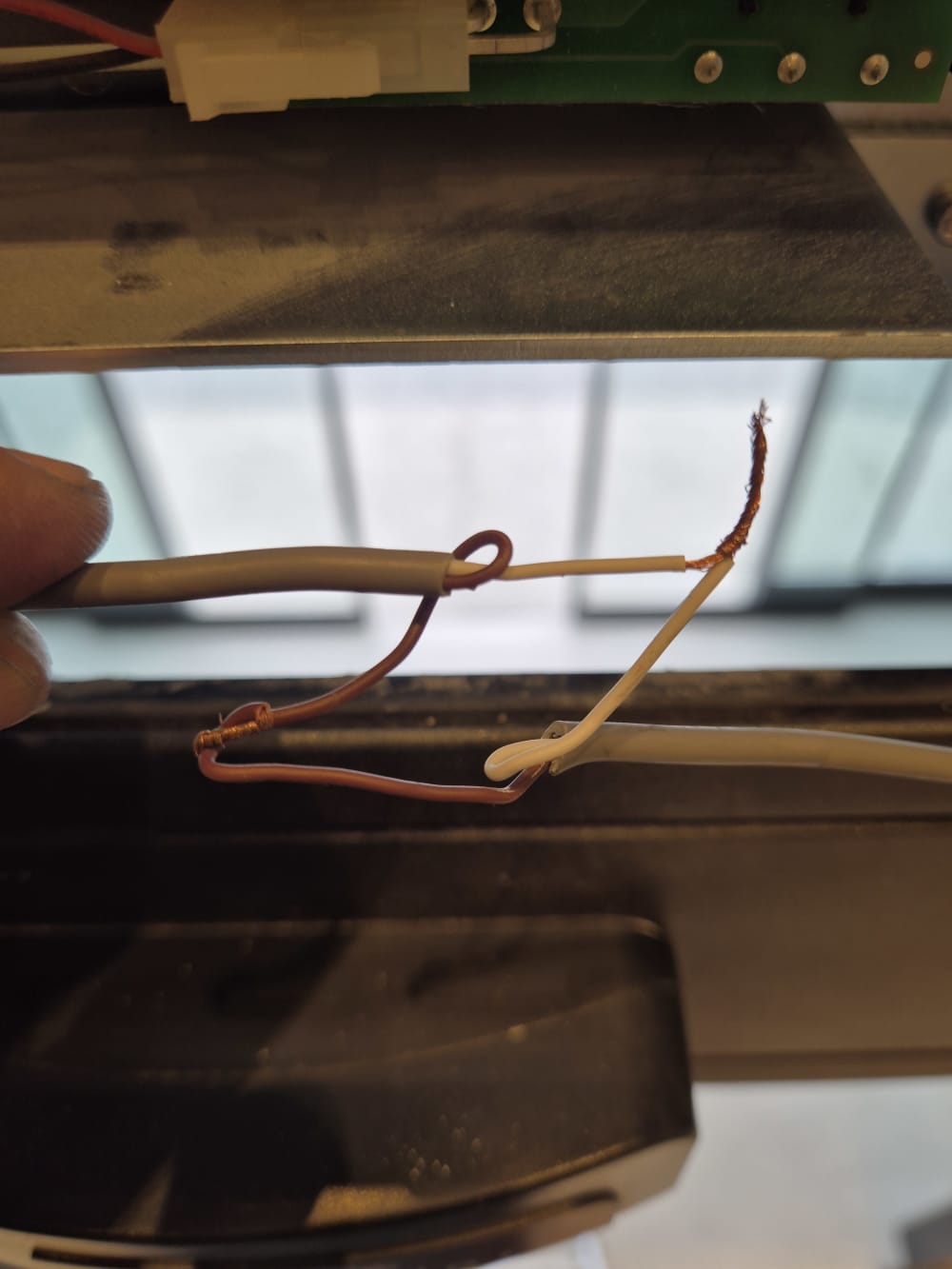

redrilling the adjustment holes in the door leaf mounts. - Circuit Failure: Radar and safety sensor cables were physically damaged. Wiring was performed using basic finger-twists insulated with "blue electrical tape."
3. Execution: 24-Step Restoration Protocol 🛠️
To return the Gilgen systems to operational status, we applied our troubleshooting algorithm, dividing the process into three key phases.

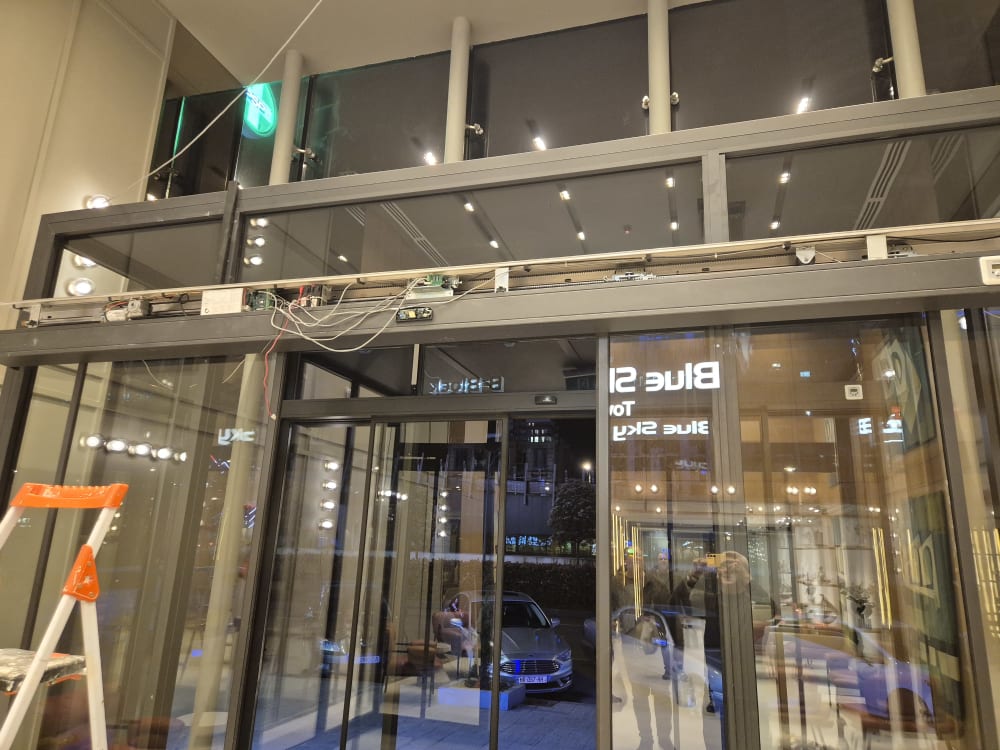

Phase A: Mechanical Cleaning and Rebuild

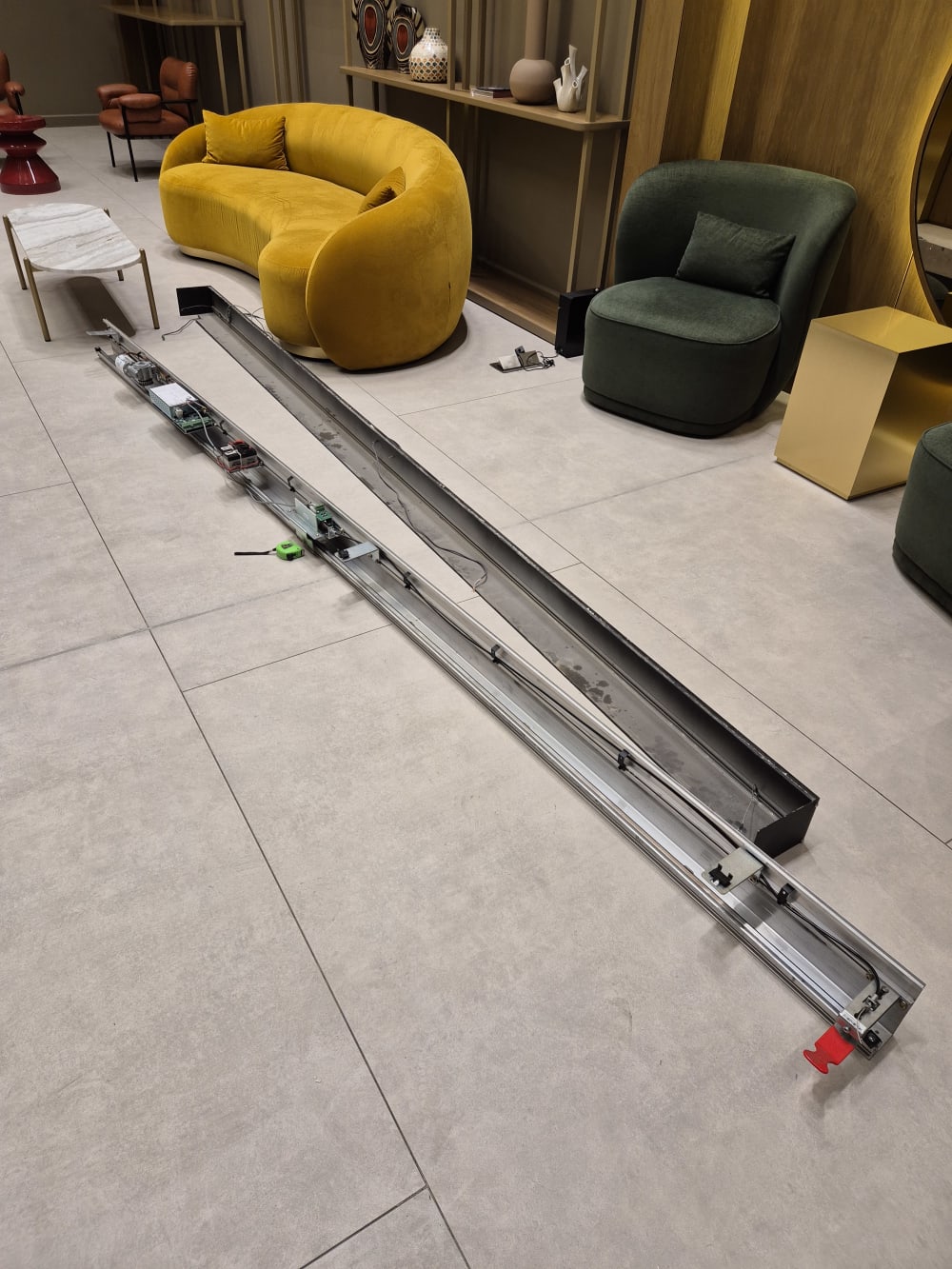

- Full disassembly of leaves and carriages.

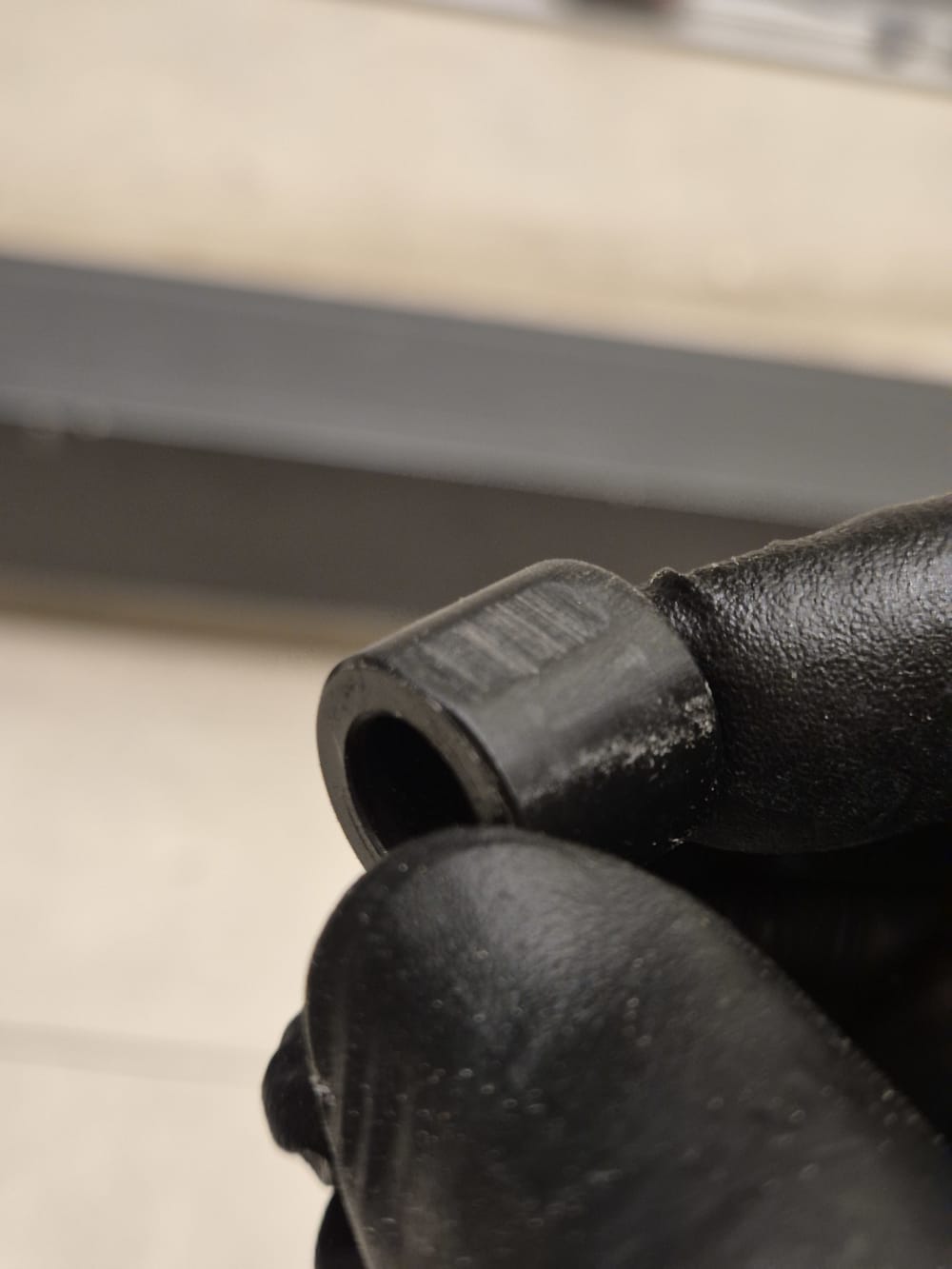

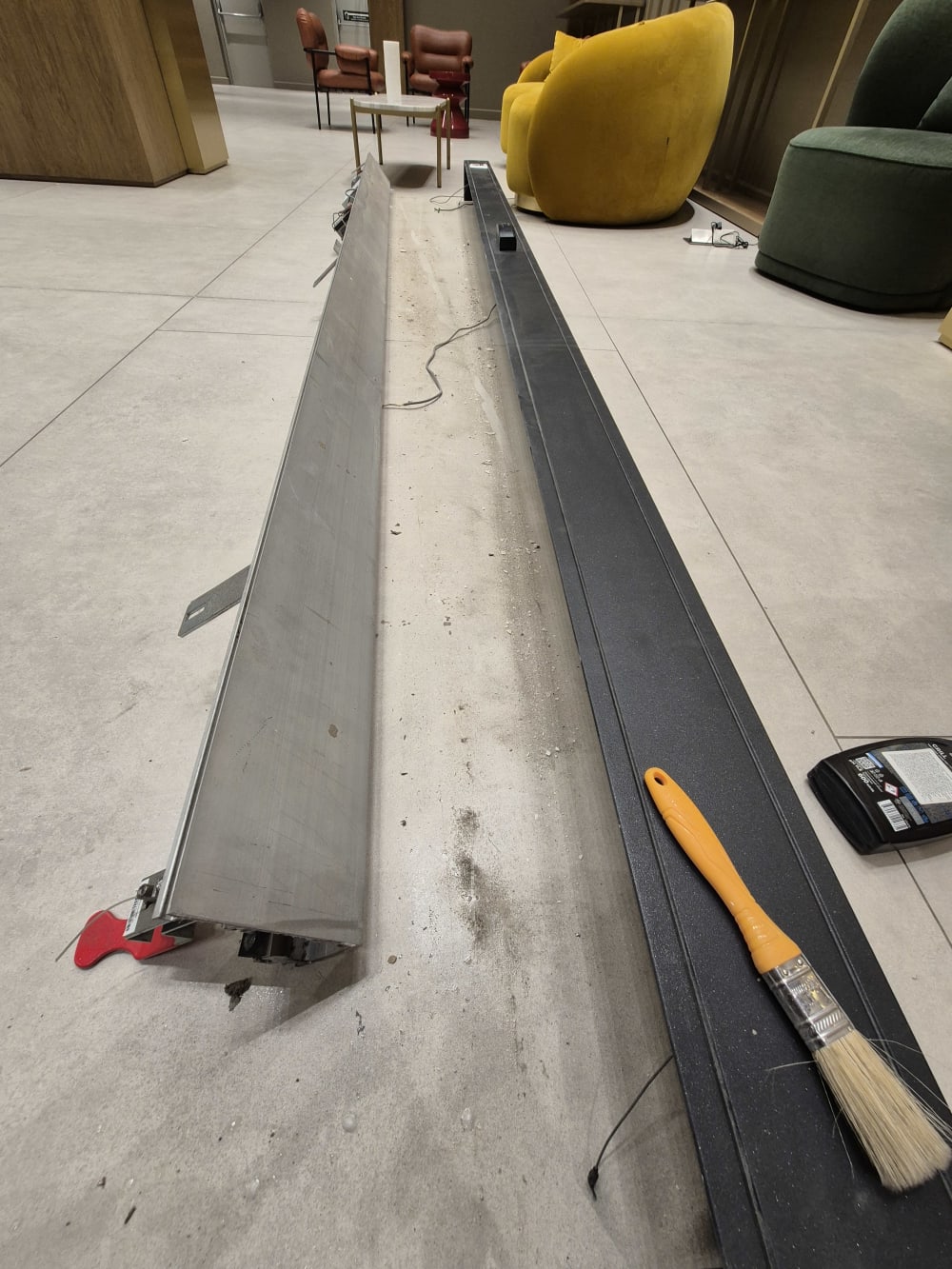

- Extraction of embedded metal shavings from nylon rollers and deep chemical cleaning of the track profile from layers of abrasive grease paste.
- Removal of "custom" screws and securing the profile through factory holes using specialized fasteners.
Phase B: Geometric Correction
- Mitigating the effects of the crude redrilling using reinforced washers and thread lockers.
- Leveling the door leaves relative to the floor.
- Adjusting carriage pressure to ensure 100% contact of all 4 rollers with the guide rail for smooth weight distribution.
Phase C: Electronic Restoration and Commissioning
- Removing wire twists: replacing damaged sections of signal cables with soldered joints and heat-shrink insulation.
- Hard Reset of Gilgen controllers to clear logs of old errors.
- Running the
Self-Learning Cycle to calibrate leaf weight, determine limit positions, and configure braking forces.
4. Outcome 📈
Through a systematic approach, equipment worth thousands of dollars was saved from capital replacement due to mechanical wear.

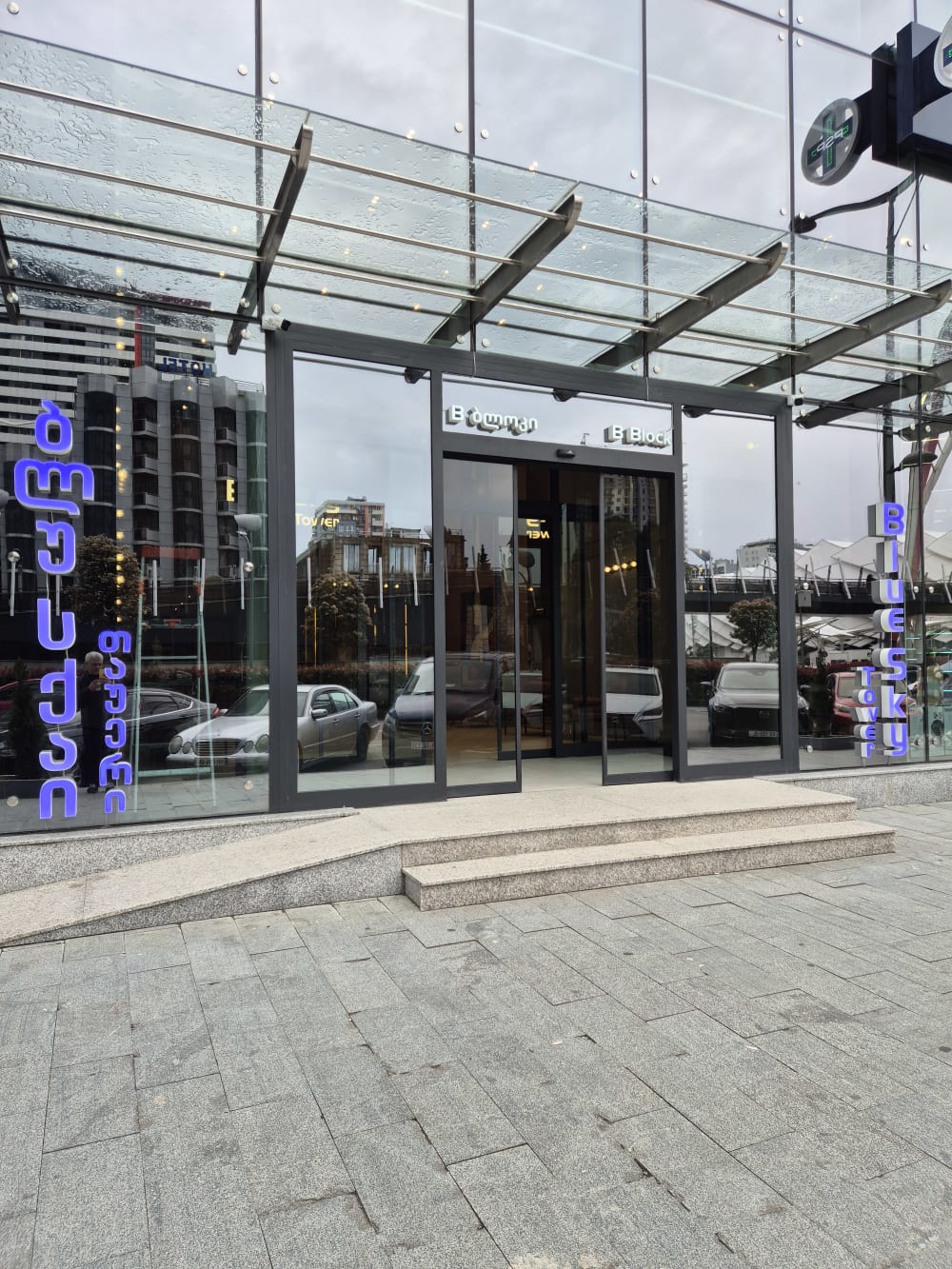

- Full Restoration: All three entrance groups (Block A, Block B, Pharmacy) were returned to standard automatic mode.
- Zero Error Log: Controllers are operating stably; alignment and looping errors have been eliminated.
- Kinematics: Leaf movement is smooth, without jerks or vibrations (though a professional might still hear the subtle remnants of abrasive wear).
- Energy Efficiency: The primary function of the doors—maintaining the microclimate within Blue Sky's commercial spaces—has been restored.
Premium equipment dies from incompetent service. Attempting to save money by calling "handymen" who treat precision kinematics with a tub of grease usually results in a full drive system replacement. A timely engineering audit allows for the correction of errors before they cause fatal damage to the company's budget.
